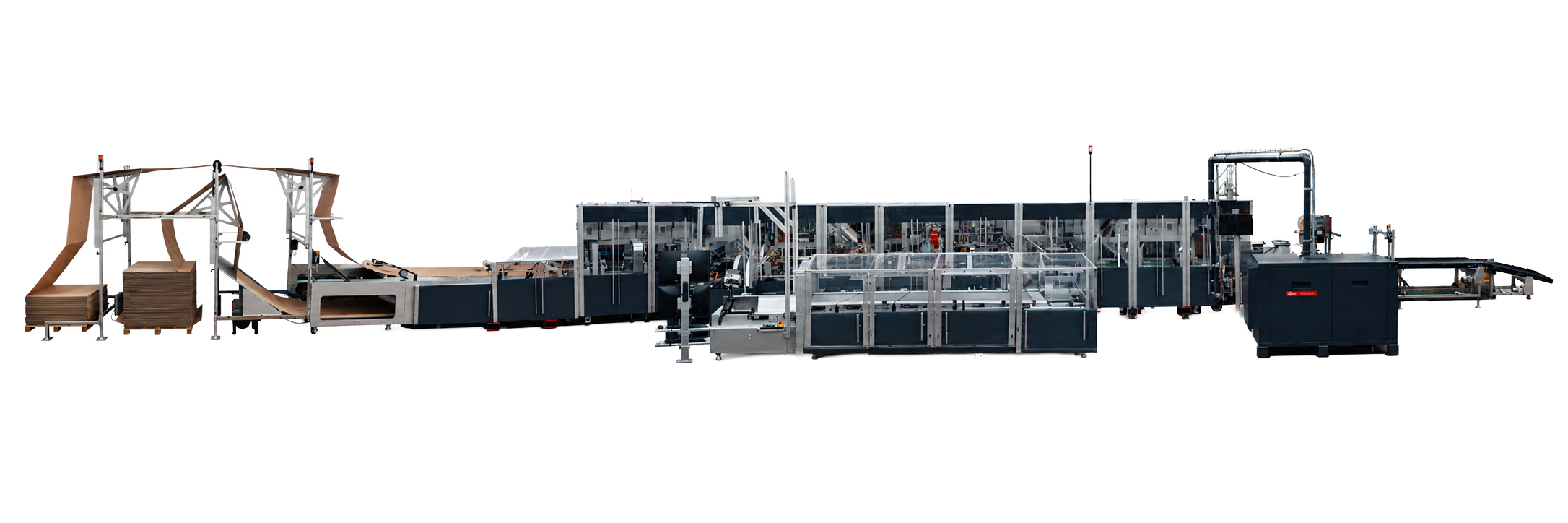

CartonWrap

The pioneer in 3D right-sized packaging

This award winning technology creates dynamic right-sized boxes from either fanfold-fed corrugate, cut sheet feeder or wave line. Boxes are created unique to the product being shipped.

22,9m x 7,3m

Fully Loaded Footprint

Unique Box Design

Each box is formed with adjustable inner flaps that lock multi-item orders firmly in place. Easy to open. Resealable. Ready for returns.

BOX

EASY TO OPEN

RESEALABLE

READY FOR RETURNS

Highlights

No void Fill

A right-sized box is directly built around the order.

NO DATA DEPENDENCY

PROTECTIVE BOX DESIGN

Technical Specifications

  • FANFOLD SPECS: from 600 mm to 1200 mm
  • CUT SHEET SPECS: MAX W 1200 x L 2300 mm
  • WAVE LINE SPECS: MAX REEL WIDTH: 1200 mm
  • MINIMUM BOX: W 240 x L 150 x H 30  mm
  • MAXIMUM BOX: W 600 x L 400 x H 215 mm o W 500 x L 400 x H 265
  • MAXIMUM MECHANICAL SPEED: 900 boxes/hour
  •  MAX PRODUCT WEIGHT 10 Kg

Features

  • Up to 4 cardboard input channels
  • Cut sheet feeder
  • Wave-line cardboard input
  • Additional Print&Apply Labelers
  • Multi Hazmat Label applicators
  • Check weigher
  • Easy opening & reseal
  • Dashboard

Ancillary
Equipment

  • Up to 6 sides reading on product input conveyor
  • Up to 4 cardboard input channels
  • Cut sheet feeder
  • Invoice printer
  • Selective enclosure feeders
  • Additional Print&Apply Labelers
  • Multi Hazmat Label applicators
  • Check weigher
  • Easy opening & reseal
  • Dashboard
  • Camlogger
  • Packvertizing
  • RFID Reader
  • Sorting system
  • Trimming shredder
