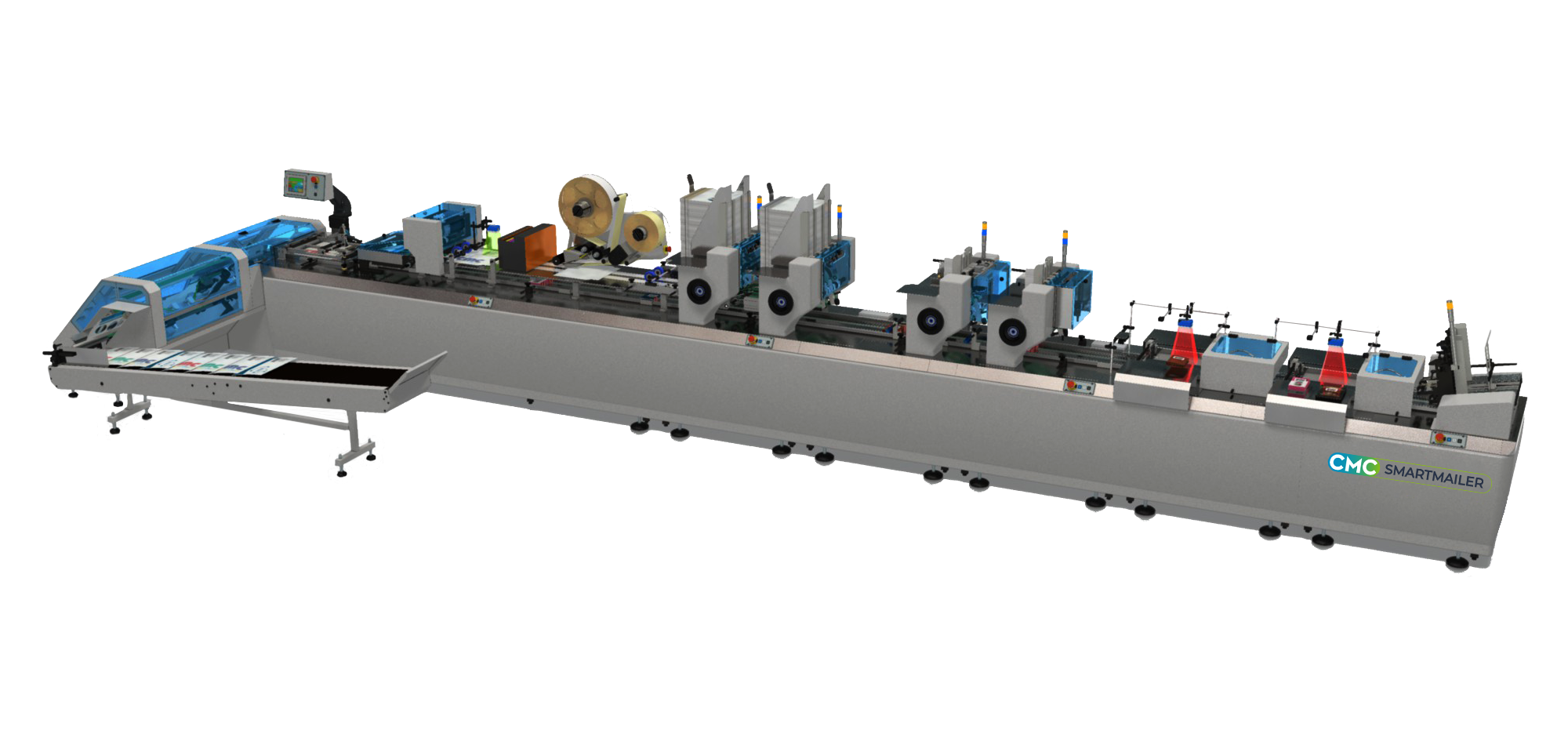

CMC SmartMailer automates the packing of products into rigid mailers and padded envelopes for shipment. Its compact, continuous-motion design supports a range of standard and non-standard products. Rotary feeders, shuttle feeders and hand-feeding areas can handle items such as CDs, cards and promotional inserts. The modular configuration allows the line to be adapted to the application, with fast adjustments and quick setup. Product tracking, barcode matching through optical readers or cameras, inline printing and selective feeding can be managed through the CMC control system. Production reports can be sent to the company network.
Padded mailer, size 1290 × 240 mm; flap 35 mm.Padded mailer, size 2290 × 380 mm; flap 40 mm.Rigid mailer, size 1335 × 235 mm; flap 50 mm.Rigid mailer, size 2380 × 240 mm; flap 45 mm.Enveloping thicknessminimum 2 mm; maximum 25.4 mm, not compressed.Maximum speed2,500 bags/hour.Standard envelope formats listed in the CMC SmartMailer brochure (width × length; flap listed separately).These are the brochure’s standard formats, not a continuous minimum-to-maximum size range. Confirm the required mailer and product combination with CMC.
