CartonWrap XL

The right-sized solution for the largest items

Boxing Solutions

CartonWrap XL

The automated right-sized solution that builds ready-to-ship boxes around the item, without void fill. Ideal for B2B and B2C.

CMC Cartonwrap

Creates dynamic boxes from either fanfold-fed corrugate, cut sheet feeder or wave line. Boxes are created unique to the product being shipped, eliminating the need to use void fillers and reducing volumes.
▶︎

TECHNICAL VIDEOS

CMC Cartonwrap

Creates dynamic boxes from either fanfold-fed corrugate, cut sheet feeder or wave line. Boxes are created unique to the product being shipped, eliminating the need to use void fillers and reducing volumes.
▶︎

Unique Box Design

Each box is built to protect what’s inside. Double layer of corrugated cardboard material on two sides. Bumper edges for corner protection.

Box_Cartonwrap_printed
Box_Cartonwrap_Label
Box_Cartonwrap_Easy_Opening
Box_Cartonwrap_Detail
Box_Cartonwrap

EASY TO OPEN

RESEALABLE

READY FOR RETURNS

Highlights

SINGLEs /Pre-CONSOLIDATED

Able to process stable single item orders and pre-consolidated multi-item orders

XL FORMATS

The machine handling the largest box formats

PROTECTIVE BOX DESIGN

Double-layer side walls with reinforced edges for enhanced corner protection

BOX LAST RIGHTSIZING

Based on real order volumes Not dependent on SKU dimensional master data No sequencing required

NO FILLER

Box-Last right-sizing eliminating the need of additional filler

REINFORCED BOX

Also thanks to strapping applied selectively for enhanced box strength

Technical Specifications

FANFOLD SPECSfrom 800 mm to 1400 mmCUT SHEET SPECSMAX W 1400 x L 2300 mmWAVE LINE SPECSMAX REEL WIDTH: 1400 mmMINIMUM BOXW 250 x L 150 x H 35  mmMAXIMUM BOXW 800 x L 600 x H 215 mm o W 490 x L 600 x H 370MAXIMUM MECHANICAL SPEED900 boxes/hourMAX PRODUCT WEIGHT12 KgHEAVY LOAD CONFIGURATION KITup to 25Kg

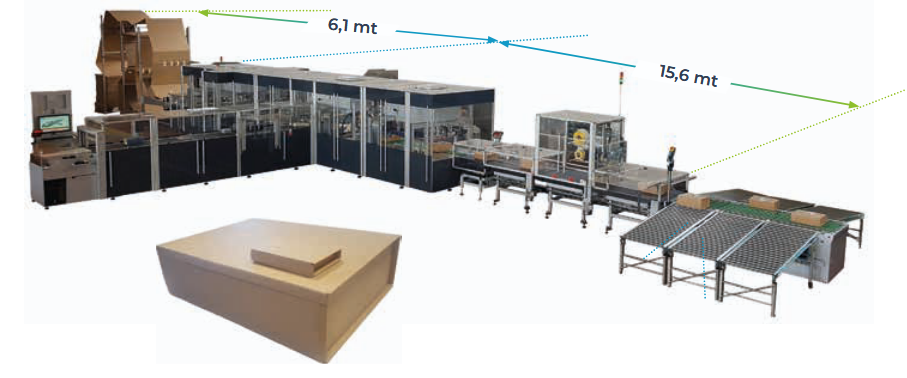

DIMENSIONS / FOOTPRINT

CASE STUDIES

View All
+

LogistaLibro
+

Kering

DISCOVER THE FULL RANGE

CartonWrap

+

The pioneer in 3D right-sized packaging

CartonWrap Duo

+

Right-sized boxes and envelopes in a single machine

CartonWrap XS

+

The right-sized solution for the smallest items.
