Genesys Combo

One machine processing singles and multi-item orders at the same time through two parallel induction streams

Boxing Solutions

Genesys Combo

An additional induct conveyor allows to insert single-line orders into the machine, while multi item orders are picked and consolidated into the Vary-Tote, scanned to size and processed through the machine. Boxes are created around the order. No void fill, one workflow, scalable up to zero-touch.

CMC Cartonwrap

Creates dynamic boxes from either fanfold-fed corrugate, cut sheet feeder or wave line. Boxes are created unique to the product being shipped, eliminating the need to use void fillers and reducing volumes.
▶︎

TECHNICAL VIDEOS

CMC Cartonwrap

Creates dynamic boxes from either fanfold-fed corrugate, cut sheet feeder or wave line. Boxes are created unique to the product being shipped, eliminating the need to use void fillers and reducing volumes.
▶︎

Unique Box Design

Each box is formed with adjustable inner flaps that lock multi-item orders firmly in place. Easy to open. Resealable. Ready for returns.

Box Closed
Box Open
Genesys_box_open

EASY TO OPEN

RESEALABLE

READY FOR RETURNS

Highlights

DUAL INDUCT MODE

Maximum operational flexibility through two feeding channels: Vary-Tote (for complex multis) and Induct conveyor

NO PRE-CONSOLIDATION

Streamlined operations with direct, single-touch picking into the Vary-Tote

INTEGRATED BUFFERING

Pre-picked/ filled VaryTotes can be stored in AS/RS, decoupling picking from packing for more balanced and efficient workflows

BOX LAST RIGHTSIZING

Based on real order volumes Not dependent on SKU dimensional master data No sequencing required

NO FILLER & SPECIAL INNER FLAPS

Box-Last right-sizing, combined with internal flaps, firmly secures multi-item orders without the need of additional filler

ZERO-TOUCH READY

Scale to unmanned robotic picking leveraging on G2R stations & Varytote internal guides self-adjusting modules

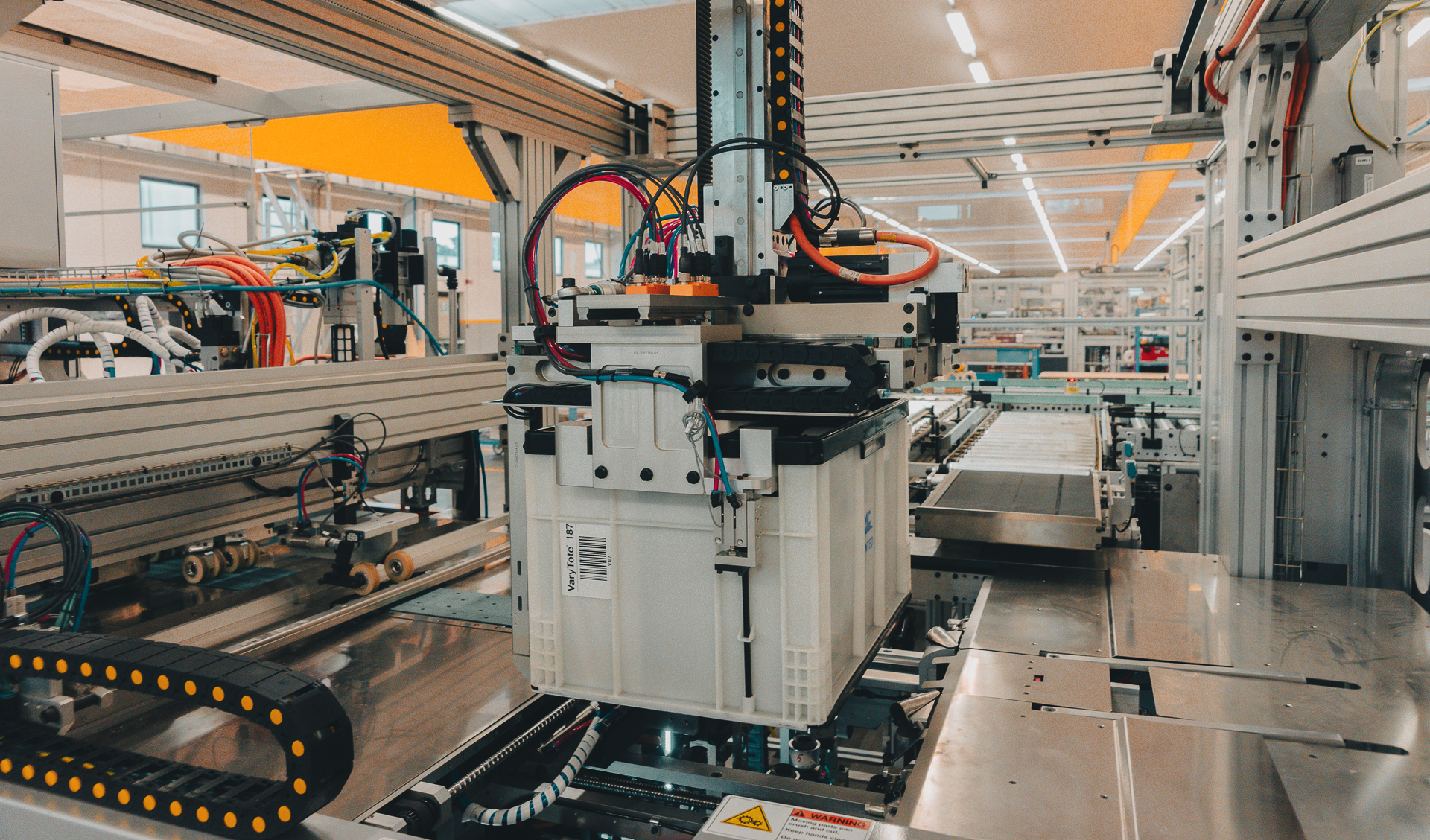

VARY-TOTE

THE PATENTED HEART
OF SEAMLESS FULFILLMENT

Picking, consolidation, and right-sizing, all in one tote.

  • Picking: picked items are directly placed inside the tote.
  • Consolidation: Inner barriers adjust to the real shape of the order.
  • Right-sizing: multi-item orders are scanned to size directly inside the tote.
  • Automated adjustment: inner barriers are adjusted to the size of the order by an automated system

Vary-Tote allows integration of warehouse systems with Genesys up to zero-touch.

Technical Specifications

FANFOLD SPECSfrom 500 mm to 1000 mmCUT SHEET SPECSMAX W 1000 x L 2300 mmWAVE LINE SPECSMAX REEL WIDTH: 1000 mmMINIMUM BOXW 270 x L 210 x H 60 (48*) mm *(W 240 x L 190 x H 60 mm)MAXIMUM BOXW 560 x L 380 x H 290 mmMAXIMUM MECHANICAL SPEED850 (vary-tote)/ 550 (manual feed) boxes/hour

20,8m x 5m

DIMENSIONS / FOOTPRINT

Ancillary
Equipment

  • Up to 4 cardboard input channels
  • Cut sheet feeder
  • Wave-line cardboard input
  • Additional Print&Apply Labelers
  • Multi Hazmat Label applicators
  • Check weigher
  • Easy opening & reseal
  • Dashboard
  • Camlogger
  • Packvertizing
  • RFID Reader
  • Sorting system
  • Trimming shredder
  • Kit up to 25kg load

Discover More

DISCOVER THE FULL RANGE

Genesys Compact

+

The Compact Box-Last Solution

Genesys

+

The flagship technology scalable to zero touch
