Genesys Compact

The Compact Box-Last Solution

Boxing Solutions

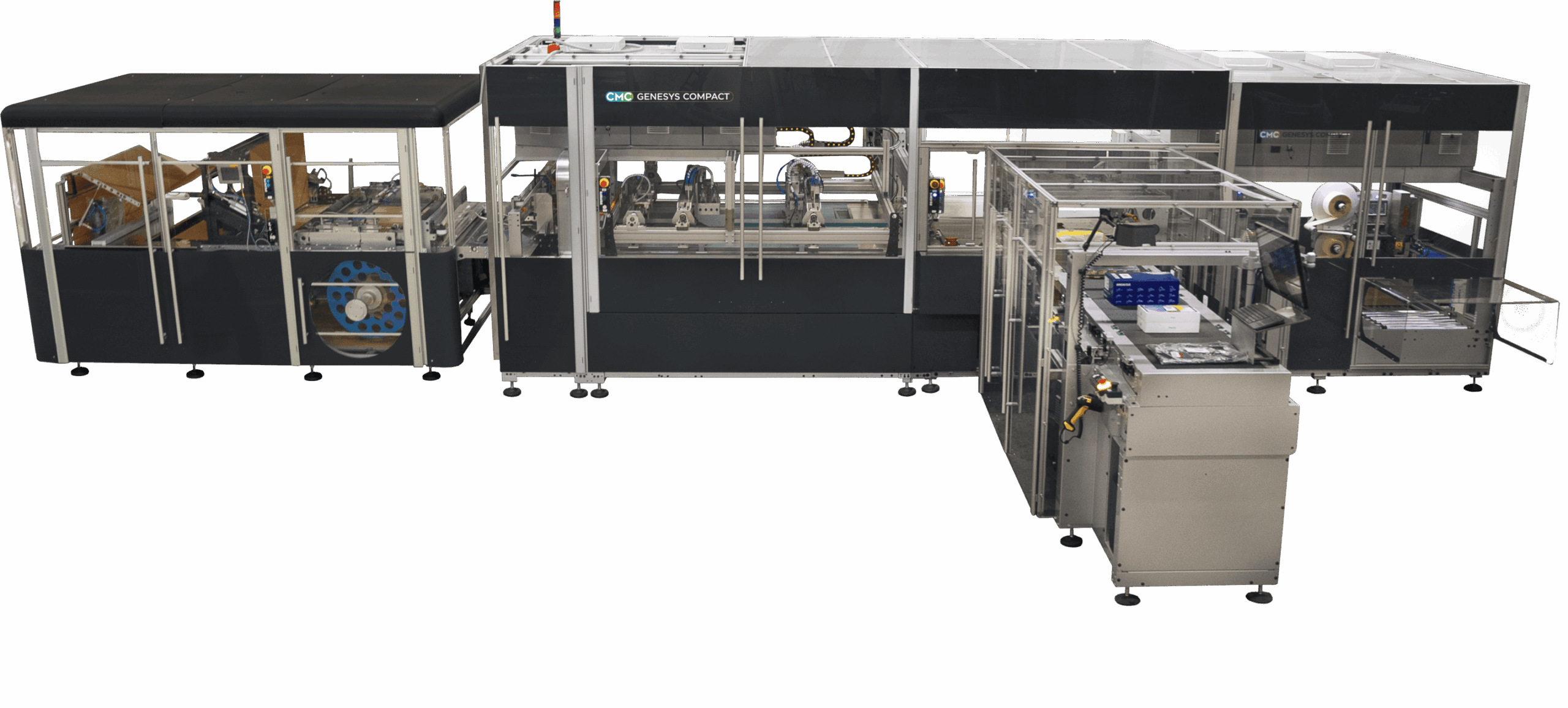

Genesys Compact

The Genesys Compact scans every order on the induct conveyor, cuts the cardboard to measure, and builds a custom-fit 3D box around it. Ideal for singles and stable multis, with no master data, and no void fill.

CMC Cartonwrap

Creates dynamic boxes from either fanfold-fed corrugate, cut sheet feeder or wave line. Boxes are created unique to the product being shipped, eliminating the need to use void fillers and reducing volumes.
▶︎

TECHNICAL VIDEOS

CMC Cartonwrap

Creates dynamic boxes from either fanfold-fed corrugate, cut sheet feeder or wave line. Boxes are created unique to the product being shipped, eliminating the need to use void fillers and reducing volumes.
▶︎

Unique Box Design

Each box is formed with adjustable inner flaps that lock multi-item orders firmly in place. Easy to open. Resealable. Ready for returns.

Box Open
Box Closed
Genesys_box_open

EASY TO OPEN

RESEALABLE

READY FOR RETURNS

Highlights

SINGLEs /Pre-CONSOLIDATED

Able to process stable single item orders and pre-consolidated multi-item orders

COMPACT FOOTPRINT

A compact footprint designed to fit easily into existing or space-constrained facilities

PLUG&PLAY

Can operate standalone for faster, simpler deployment into brownfield sites flows

BOX LAST RIGHTSIZING

Based on real order volumes Not dependent on SKU dimensional master data No sequencing required

NO FILLER & SPECIAL INNER FLAPS

Box-Last right-sizing, combined with internal flaps, firmly secures multi-item orders without the need of additional filler

CAPEX CONSCIOUS

Lower initial investment, with reduced integration complexity when deployed standalone

Technical Specifications

FANFOLD SPECSfrom 500 mm to 1000 mmCUT SHEET SPECSMAX W 1000 x L 2300 mmWAVE LINE SPECSMAX REEL WIDTH 1000 mmMINIMUM BOXW 270 x L 210 x H 60 (48*) mm *(W 240 x L 190 x H 60 mm)MAXIMUM BOXW 600 x L 400 x H 290 mmMAXIMUM MECHANICAL SPEED550 boxes/hour

12,6 m x 2,9 m

DIMENSIONS / FOOTPRINT

Ancillary
Equipment

  • Up to 4 cardboard input channels
  • Cut sheet feeder
  • Wave-line cardboard input
  • Additional Print&Apply Labelers
  • Multi Hazmat Label applicators
  • Check weigher
  • Easy opening & reseal
  • Dashboard
  • Camlogger
  • Packvertizing
  • RFID Reader
  • Sorting system
  • Trimming shredder
  • Kit up to 25kg load

Discover More

CASE STUDIES

View All
+

Musictoday

Protecting vinyls and merchandise with right-sized packaging automation

DISCOVER THE FULL RANGE

Genesys

+

The flagship technology scalable to zero touch

Genesys Combo

+

One machine processing singles and multi-item orders at the same time through two parallel induction streams
