Genesys

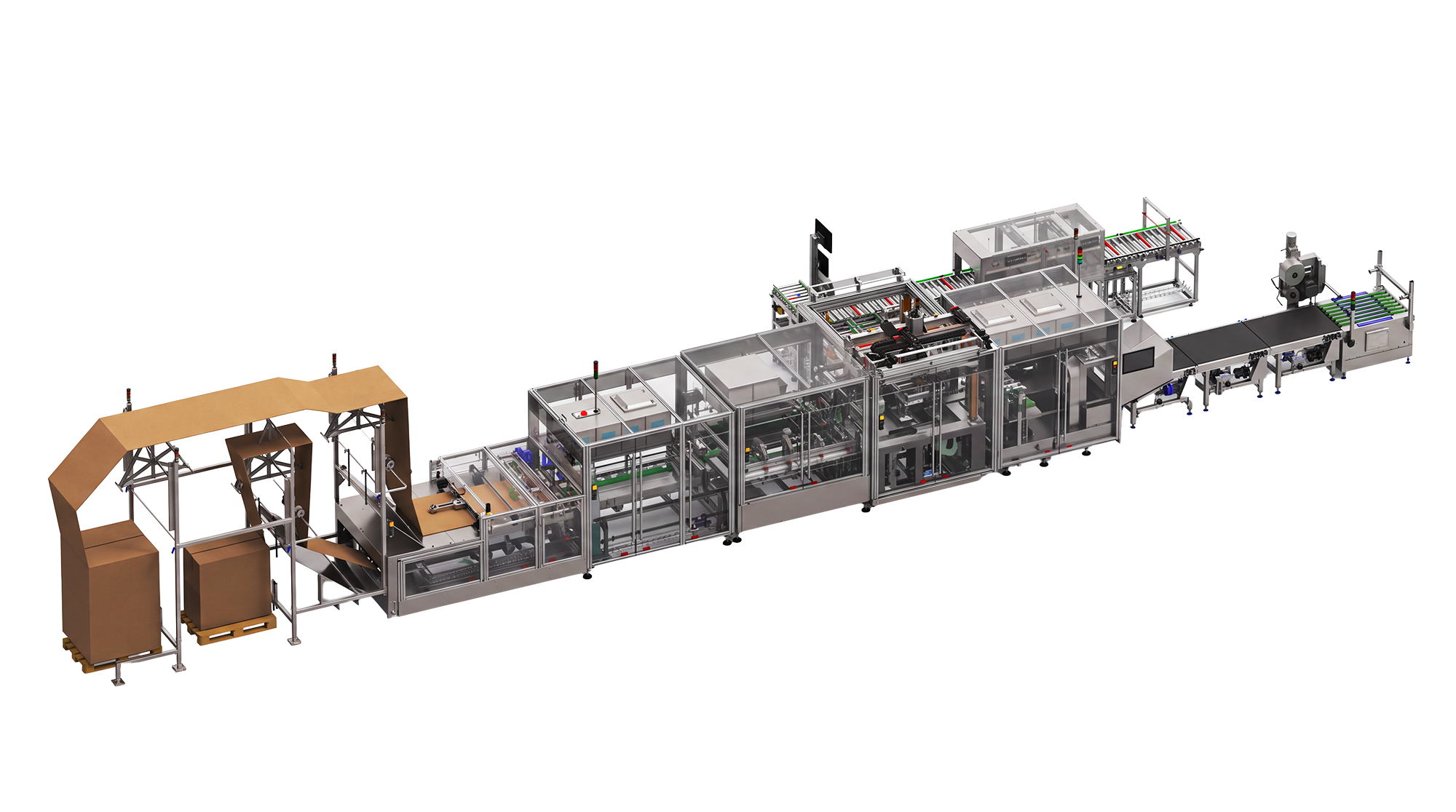

The flagship technology scalable to zero touch

Items are picked and consolidated into the Vary-Tote. Orders are scanned to size and Genesys builds a right-sized 3D box around the order. No master data. No void fill. Singles and complex multis, in one workflow, scalable up to a zero-touch warehouse.

20,8m x 5m

Fully Loaded Footprint

Unique Box Design

Each box is formed with adjustable inner flaps that lock multi-item orders firmly in place. Easy to open. Resealable. Ready for returns.

BOX

EASY TO OPEN

RESEALABLE

READY FOR RETURNS

Highlights

Multi items. Multi shapes.

singles and complex shaped multis can be processed in one single flow.

No pre-consolidation

Items are picked and consolidated directly into the Vary-Tote.

Right-sized by nature

orders are scanned to size.

No void Fill

A right-sized box is directly built around the order.

VARY - TOTE

PATENTED

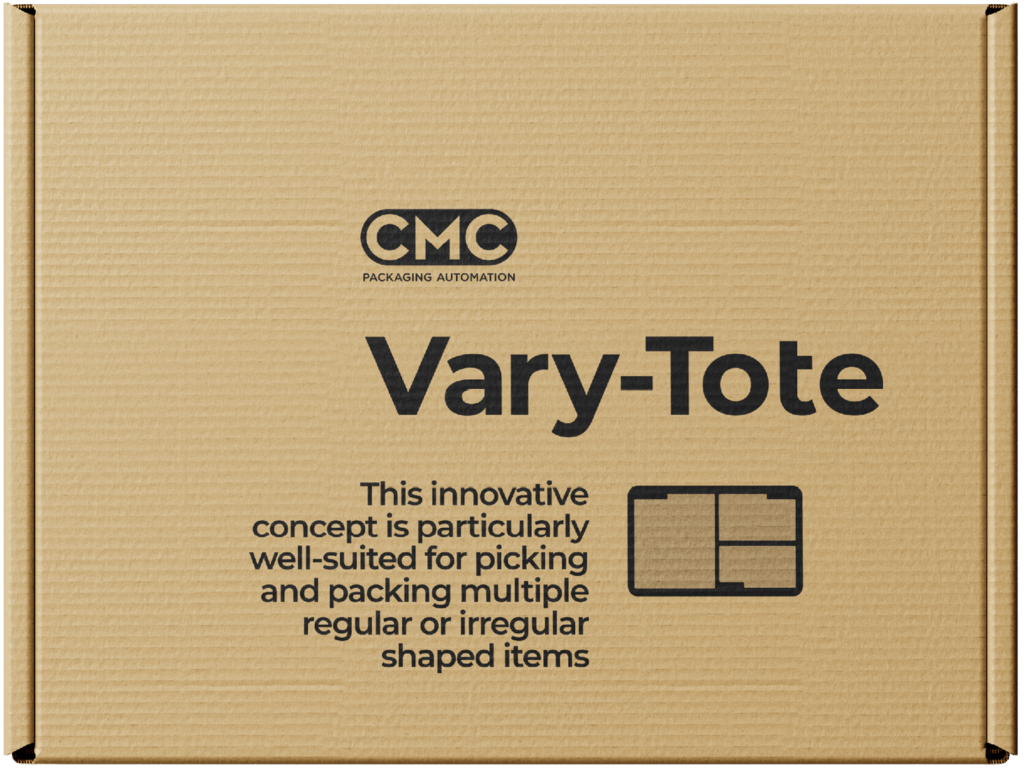

VARY-TOTE

THE PATENTED HEART
OF SEAMLESS FULFILLMENT

Picking, consolidation, and right-sizing, all in one tote.
  • Picking: picked items are directly placed inside the tote.
  • Consolidation: Inner flaps adjust to the real shape of the order.
  • Right-sizing: multi-item orders are scanned to size directly inside the tote.

Vary-Tote allows integration of warehouse systems with Genesys up to zero-touch.

Technical Specifications

  • FANFOLD SPECS: from 500 mm to 1000 mm
  • CUT SHEET SPECS: MAX W 1000 x L 2300 mm
  • WAVE LINE SPECS: MAX REEL WIDTH: 1000 mm
  • MINIMUM BOX: W 270 x L 210 x H 60 (48*) mm *(W 240 x L 190 x H 60 mm)
  • MAXIMUM BOX: W 600 x L 400 x H 300 mm
  • MAXIMUM MECHANICAL SPEED: 550 boxes/hour

Features

  • Up to 4 cardboard input channels
  • Cut sheet feeder
  • Wave-line cardboard input
  • Additional Print&Apply Labelers
  • Multi Hazmat Label applicators
  • Check weigher
  • Easy opening & reseal
  • Dashboard

Ancillary
Equipment

  • Up to 4 cardboard input channels
  • Cut sheet feeder
  • Wave-line cardboard input
  • Additional Print&Apply Labelers
  • Multi Hazmat Label applicators
  • Check weigher
  • Easy opening & reseal
  • Dashboard
  • Camlogger
  • Packvertizing
  • RFID Reader
  • Sorting system
  • Trimming shredder
  • Kit up to 25kg load

Discover More

Customer stories

CASE

STUDIES

View All
+

Musictoday

Protecting vinyls and merchandise with right-sized packaging automation

DISCOVER THE FULL RANGE

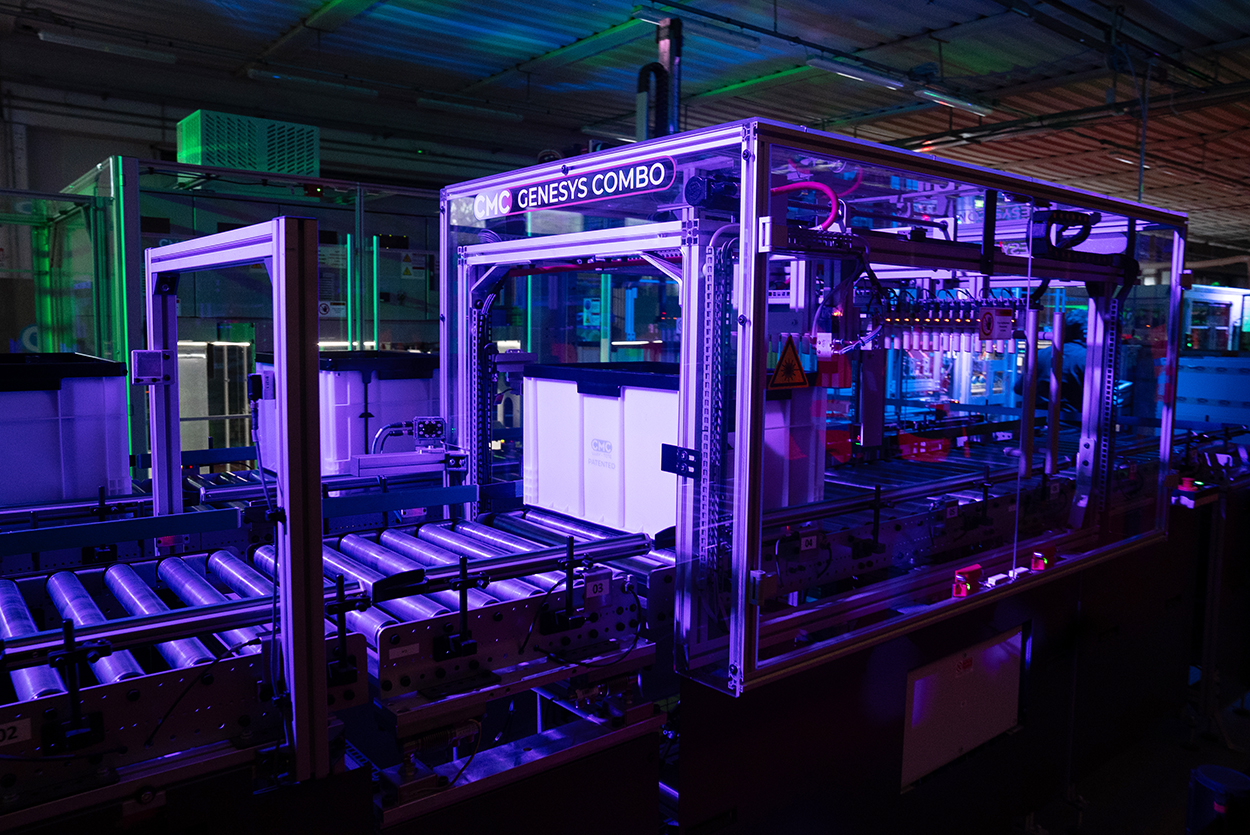

Genesys Combo

+

One machine processing singles and multi items at the same time

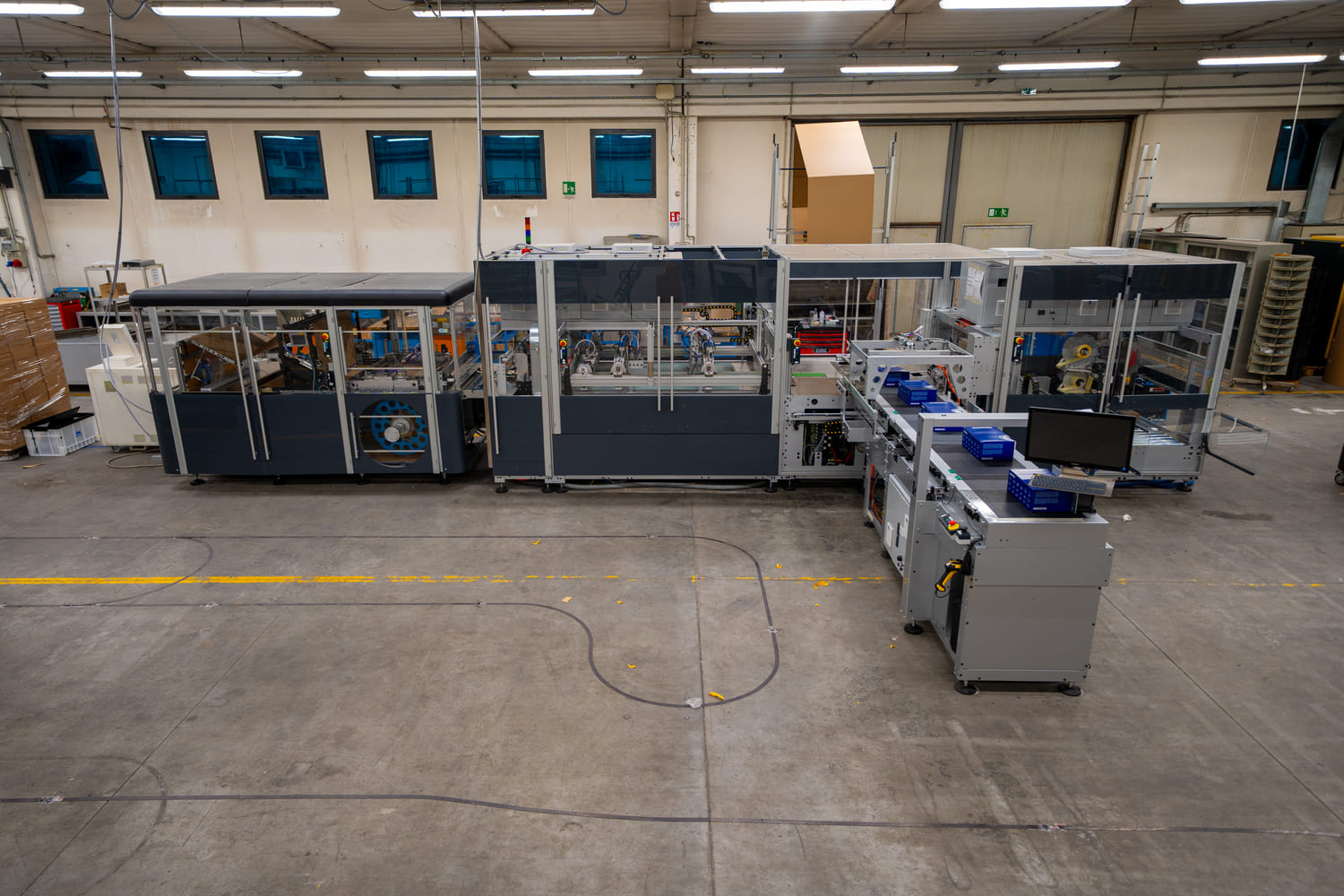

Genesys Compact

+

The Compact Box-Last Solution

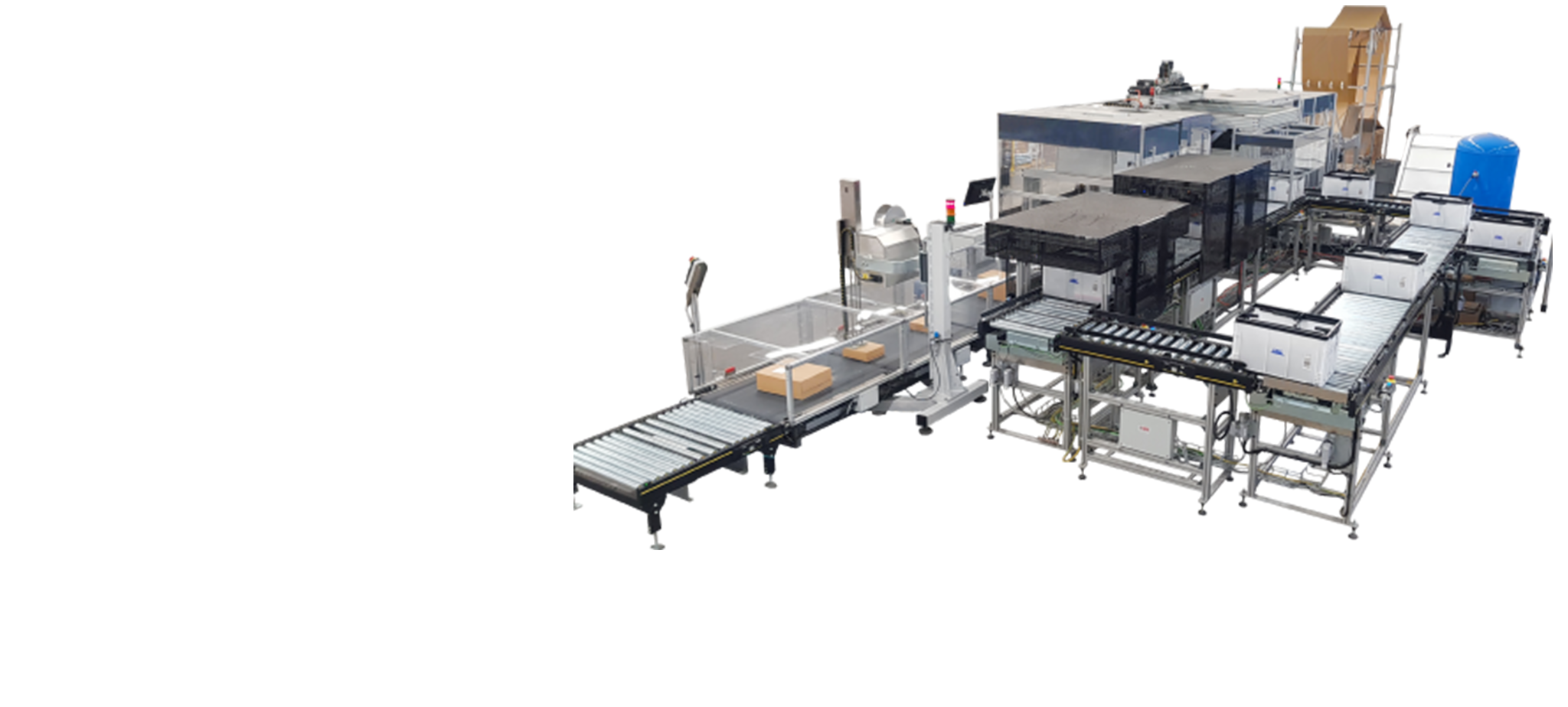

Genesys Prima

+

The smartest Box First.
